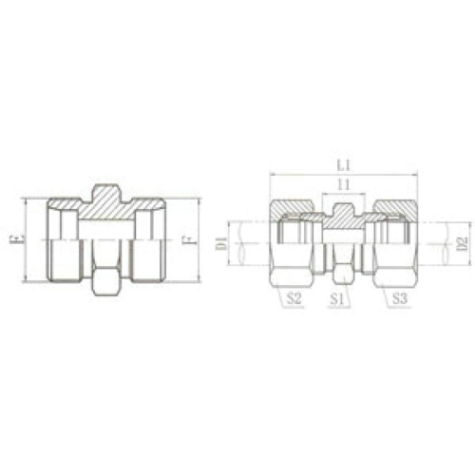

PART NO. |
THREAD |
TUBE O.D. |
DIMENSIONS | ||||||
E |
F |
D1 |
D2 |
I1 |
L1 |
S1 |
S2 |
S3 | |
1D-14 |
M14X1.5 |
M14X1.5 |
6 |
6 |
16 | 45 | 14 | 17 | 17 |
1D-16 |
M16X1.5 |
M16X1.5 |
8 |
8 |
18 | 47 | 17 | 19 | 19 |
1D-18 |
M18X1.5 |
M18X1.5 |
10 |
10 |
17 | 49 | 19 | 22 | 22 |
1D-20 |
M20X1.5 |
M20X1.5 |
12 |
12 |
19 | 51 | 22 | 24 | 24 |
1D-22 |
M22X1.5 |
M22X1.5 |
14 |
14 |
22 | 57 | 24 | 27 | 27 |
1D-24 |
M24X1.5 |
M24X1.5 |
16 |
16 |
21 | 57 | 27 | 30 | 30 |
1D-30 |
M30X2 |
M30X2 |
20 |
20 |
23 | 66 | 32 | 36 | 36 |
1D-36 |
M36X2 |
M36X2 |
25 |
25 |
26 | 74 | 41 | 46 | 46 |
1D-42 |
M42X2 |
M42X2 |
30 |
30 |
27 | 80 | 46 | 50 | 50 |
1D-52 |
M52X2 |
M52X2 |
38 |
38 |
29 | 90 | 55 | 60 | 60 |
