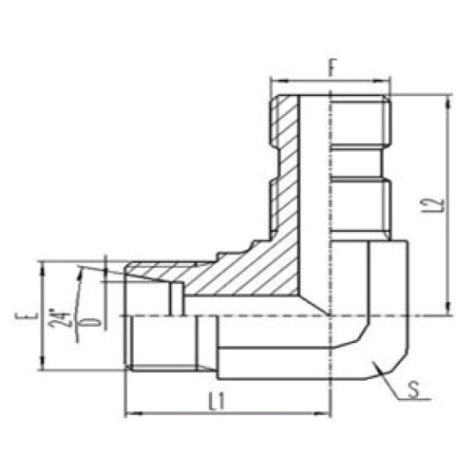

代 號 |
螺 紋 THREAD |
管子外徑 TUBE O.D |
尺 寸 DIMENSIONS |
|||
PART NO. |
E |
F |
D1 |
L1 |
L2 |
S |
1DO9-14-04OG |
M14X1.5 |
7/16"X20 |
6 |
24.5 |
30 |
14 |
1DO9-16-06OG |
M16X1.5 |
9/16" X18 |
8 |
25.7 |
33.3 |
16 |
1DO9-18-06OG |
M18X1.5 |
9/16" X18 |
10 |
27 |
33.5 |
19 |
1DO9-18-08OG |
M18X1.5 |
3/4"X16 |
10 |
27 |
37.5 |
19 |
1DO9-20-08OG |
M20X1.5 |
3/4"X16 |
12 |
27 |
37.5 |
19 |
1DO9-22-10OG |
M22X1.5 |
7/8"X14 |
14 |
31 |
44 |
22 |
1DO9-24-10OG |
M24X1.5 |
7/8"X14 |
16 |
32.5 |
46.5 |
24 |
1DO9-30-12OG |
M30X2 |
1.1/16"X12 |
20 |
38.8 |
53.5 |
30 |
1DO9-36-16OG |
M36X2 |
1.5/16"X12 |
25 |
44.8 |
57.5 |
36 |
1DO9-42-20OG |
M42X2 |
1.5/8"X12 |
30 |
49.7 |
59.5 |
41 |
1DO9-52-24OG |
M52X2 |
1.7/8"X12 |
38 |
61.8 |
70.5 |
55 |
注:如需帶卡套及卡套螺母整套訂貨,則請在代號后加“RN”,如“A1DO9-14-04OGRN”
