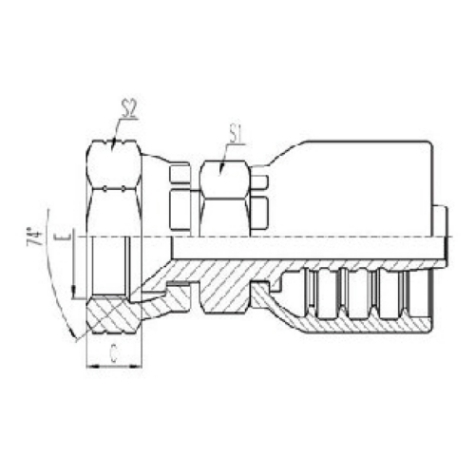

代 號 |
螺 紋 E |
膠管 HOSE BORE |
尺 寸 DIMENSIONS |
|||
PART NO. |
THREAD E |
公稱(chēng)內徑 DN |
標號 DASH |
C |
S1 |
S2 |
26711-F-04-04 |
7/16"X20 |
6 |
04 |
9 |
15 |
15 |
26711-F-05-05 |
1/2"X20 |
8 |
05 |
9.5 |
17 |
17 |
26711-F-06-06 |
9/16"X18 |
10 |
06 |
10.5 |
19 |
19 |
26711-F-08-08 |
3/4"X16 |
12 |
08 |
11 |
24 |
24 |
26711-F-10-10 |
7/8"X14 |
16 |
10 |
13 |
27 |
27 |
26711-F-12-12 |
1.1/16"X12 |
20 |
12 |
15 |
32 |
32 |
26711-F-16-16 |
1.5/16"X12 |
25 |
16 |
16 |
41 |
41 |
26711-F-16-20 |
1.5/16"X12 |
32 |
20 |
16 |
41 |
41 |
26711-F-20-16 |
1.5/8"X12 |
25 |
16 |
17 |
50 |
50 |
26711-F-20-20 |
1.5/8"X12 |
32 |
20 |
17 |
50 |
50 |
26711-F-24-20 |
1.7/8"X12 |
32 |
20 |
20 |
55 |
55 |
26711-F-24-24 |
1.7/8"X12 |
38 |
24 |
20 |
55 |
55 |
注: 1. 表中代號用于編織軟管; 2. 如需用于纏繞軟管代號改為26712-F-xx-xx;
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 26712-F-xx-xx;
