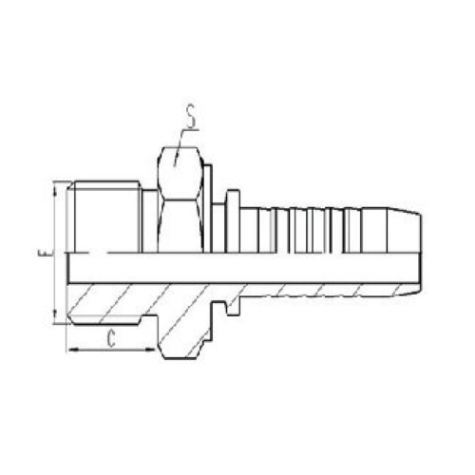

代 號 |
螺紋 E |
膠 管 HOSE BORE |
尺寸 DIMENSIONS |
||
PART NO. |
THREAD E |
公稱(chēng)內徑 DN |
標號 DASH |
C |
S |
16011-04-04 |
7/16"X20 |
6 |
04 |
9.1 |
14 |
16011-05-04 |
1/2"X20 |
6 |
04 |
9.1 |
17 |
16011-06-05 |
9/16"X18 |
8 |
05 |
9.9 |
17 |
16011-06-06 |
9/16"X18 |
10 |
06 |
9.9 |
17 |
16011-08-06 |
3/4"X16 |
10 |
06 |
11.1 |
22 |
16011-08-08 |
3/4"X16 |
12 |
08 |
11.1 |
22 |
16011-10-08 |
7/8"X14 |
12 |
08 |
12.7 |
27 |
16011-10-10 |
7/8"X14 |
16 |
10 |
12.7 |
27 |
16011-12-10 |
1.1/16"X12 |
16 |
10 |
15.1 |
32 |
16011-12-12 |
1.1/16"X12 |
20 |
12 |
15.1 |
32 |
16011-16-16 |
1.5/16"X12 |
25 |
16 |
15.1 |
38 |
注: 1. 表中代號用于編織軟管; 2. 如需用于纏繞軟管代號改為1601 2-xx-xx;
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 1601 2-xx-xx;
