代 號 |
法蘭型號 |

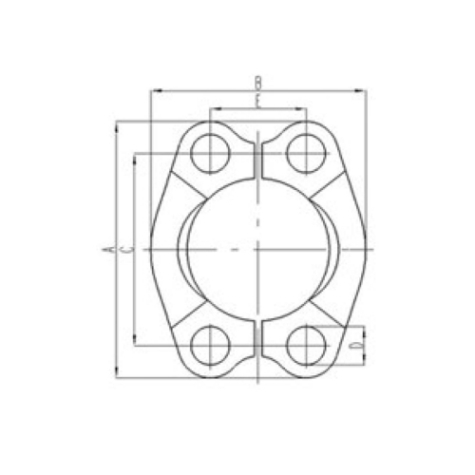

尺寸 DIMENSIONS |
||||
PART NO. |
FLANGE SIZE |
A |
B |
C |
D |
E |
FS-08 |
1/2" |
56.3 |
47 |
40.5 |
9 |
18.2 |
FS-12 |
3/4" |
71.4 |
60 |
50.8 |
11 |
23.8 |
FS-16 |
1" |
80.9 |
70 |
57.1 |
13 |
27.8 |
FS-20 |
1.1/4" |
95.2 |
77 |
66.7 |
15 |
31.8 |
FS-24 |
1.1/2" |
112.7 |
95 |
79.4 |
17 |
36.5 |
FS-32 |
2" |
133.3 |
114 |
96.8 |
21 |
44.5 |
注:螺栓需另訂。
