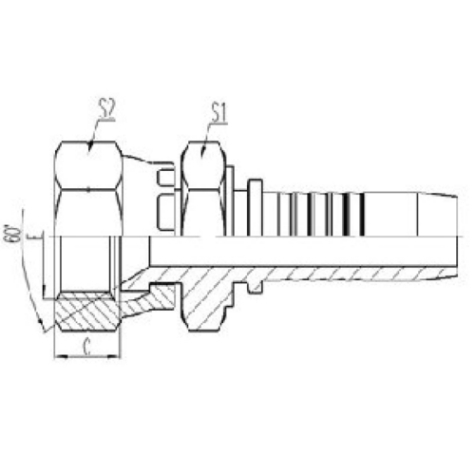

代 號 |
螺紋 E |
膠 管 HOSE BORE |
尺寸 DIMENSIONS |
|||
PART NO. |
THREAD E |
公稱(chēng)內徑 DN |
標號 DASH |
C |
S1 |
S2 |
29611-02-03 |
G1/8"X28 |
5 |
03 |
6.5 |
14 |
14 |
29611-04-04 |
G1/4"X19 |
6 |
04 |
8 |
19 |
19 |
29611-06-06 |
G3/8"X19 |
10 |
06 |
9 |
22 |
22 |
29611-08-08 |
G1/2"X14 |
12 |
08 |
12 |
27 |
27 |
29611-10-10 |
G5/8"X14 |
16 |
10 |
11.5 |
20 |
30 |
29611-12-12 |
G3/4"X14 |
20 |
12 |
13.5 |
32 |
32 |
29611-16-16 |
G1"X11 |
25 |
16 |
16 |
41 |
41 |
29611-20-20 |
G1.1/4"X11 |
32 |
20 |
18.5 |
50 |
50 |
29611-24-24 |
G1.1/2"X11 |
40 |
24 |
19 |
55 |
55 |
29611-32-32 |
G2"X11 |
50 |
32 |
23 |
70 |
70 |
注: 1、表中代號用于編織軟管; 2、如需用于纏繞軟管代號改為29612-xx-xx .
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 29612-xx-xx .
