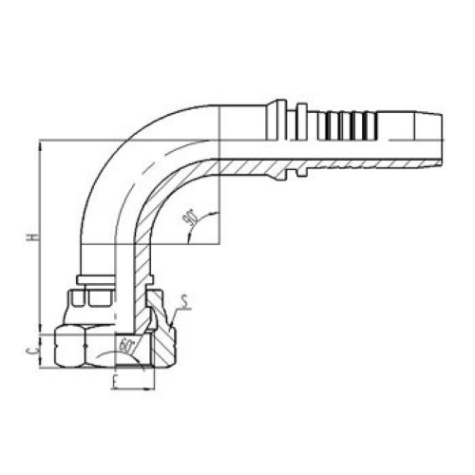

代 號 |
螺紋 E |
膠 管 HOSE BORE |
尺寸 DIMENSIONS |
|||
PART NO. |
THREAD E |
公稱(chēng)內徑 DN |
標號 DASH |
C |
S |
H |
22691-02-03 |
G1/8"X28 |
4 |
03 |
5.5 |
14 |
31.5 |
22691-04-04 |
G1/4"X19 |
6 |
04 |
5.5 |
19 |
36.5 |
22691-06-06 |
G3/8"X19 |
10 |
06 |
6.3 |
22 |
43 |
22691-08-08 |
G1/2"X14 |
12 |
08 |
7.5 |
27 |
51 |
22691-10-10 |
G5/8"X14 |
16 |
10 |
9.5 |
30 |
56 |
22691-12-12 |
G3/4"X14 |
20 |
12 |
10.9 |
32 |
66 |
22691-16-16 |
G1"X11 |
25 |
16 |
11.7 |
41 |
73.8 |
22691-20-20 |
G1.1/4"X11 |
32 |
20 |
11 |
50 |
87 |
22691-24-24 |
G1.1/4"X11 |
38 |
24 |
13 |
55 |
102 |
22691-32-32 |
G2"X11 |
51 |
32 |
16 |
70 |
125.3 |
注: 1、表中代號用于編織軟管; 2、如需用于纏繞軟管代號改為 2269 2-xx-xx.
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 2269 2-
