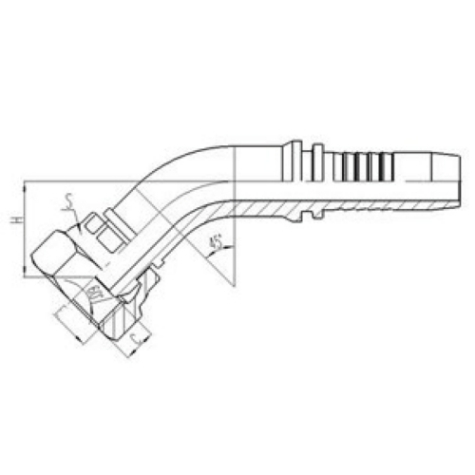

代 號 |
螺紋 E |
膠 管 HOSE BORE |
尺寸 DIMENSIONS |
|||
PART NO. |
THREAD E |
公稱(chēng)內徑 DN |
標號 DASH |
C |
S |
H |
20641-14-04 |
M14X1.5 |
6 |
04 |
5.5 |
19 |
20.6 |
20641-16-05 |
M16X1.5 |
8 |
05 |
5.5 |
22 |
21.8 |
20641-18-06 |
M18X1.5 |
10 |
06 |
5.6 |
24 |
23.2 |
20641-22-08 |
M22X1.5 |
12 |
08 |
6 |
27 |
26.8 |
20641-27-10 |
M27X1.5 |
16 |
10 |
6 |
32 |
29.2 |
20641-30-12 |
M30X1.5 |
20 |
12 |
6 |
36 |
33.5 |
注: 1. 表中代號用于編織軟管; 2. 如需用于纏繞軟管代號改為E20642-xx-xx;
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is E20642-xx-xx;
